RG6 Coaxial Cable
Dual Shield RG6 for Cable TV, Satellite, and Broadband — Riser, Plenum & Direct Burial
PSI Data RG6 coaxial cable provides reliable signal transmission for cable television, satellite, and broadband internet. Available in dual-shield and quad-shield configurations, with riser (CMR), plenum (CMP), and direct burial options. 75-ohm impedance, 18 AWG solid copper-clad steel centre conductor.

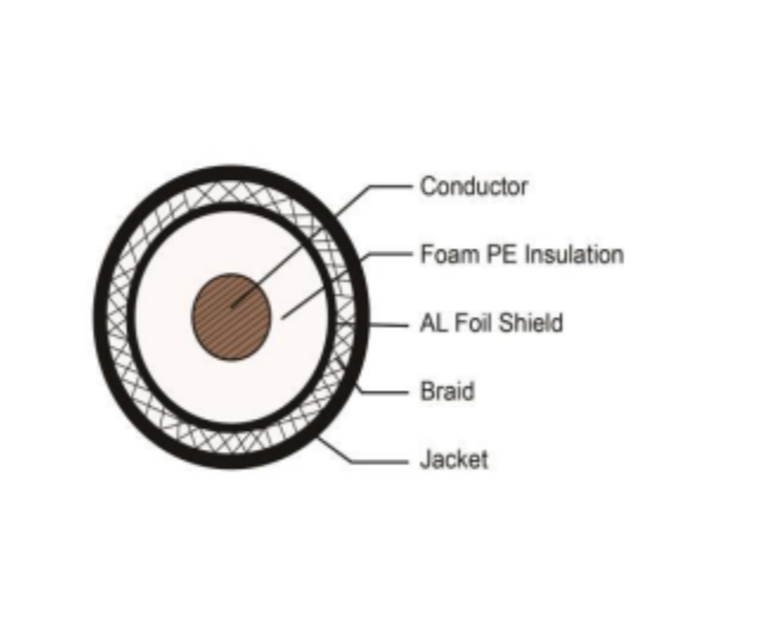

RG6 Dual Shield Riser CMR
18 AWG CCS, 60% Al Braid + Foil, 75 Ohm, CMR
Standard dual-shield RG6 for riser and horizontal runs.
Applications:

| Part Number | Description |
|---|---|
| PSI-RG6CMR-XX | RG6 60% CCS Foil CMR 3GHz |
| PSI-RG6CMP-WH | RG6U 60% AL Braid 18AWG SOL CCS CMP |
RG6 Dual Shield Direct Burial Outdoor
18 AWG Copper Clad Steel (CCS), Gel-Filled, Direct Burial
Gel-filled jacket for direct underground installation. UV-stabilized outer jacket for above-ground outdoor runs.
Applications:

| Part Number | Description |
|---|---|
| PSI-RG6ODB | 18AWG Copper Clad Steel (CCS) Coaxial Cable — Direct Burial |
