CAT5e Cable
Category 5 Enhanced — Gigabit Ethernet Permanent Link System Solutions
PSI Data CAT5e cable delivers reliable Gigabit Ethernet performance for commercial and residential structured cabling. Available in riser (CMR/FT4) and plenum (CMP/FT6) ratings, UL listed and CSA certified. 24 AWG 4-pair UTP construction meets TIA-568 Category 5e requirements up to 100 MHz. Ideal for voice, data, and low-voltage applications in offices, schools, and multi-tenant buildings.
CAT5e Riser (CMR / FT4)
24 AWG, 4-Pair UTP, 350 MHz, CMR/FT4 Rated
Suitable for vertical runs between floors. Meets UL CMR and CSA FT4 flame test requirements.
Applications:
| Part Number | Description |
|---|---|
| PSI-5ECMR-BL-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMR-WH-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMR-GY-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMR-YL-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMR-GN-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMR-RD-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMR-BK-1000 | CAT5e CMR Riser 24AWG 4-Pair UTP 1000ft Pull Box |

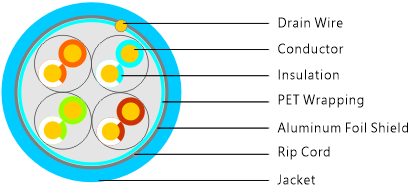

CAT5e Plenum (CMP / FT6)
24 AWG, 4-Pair UTP, 350 MHz, CMP/FT6 Rated
Required for installation in air-handling spaces (plenums). Meets UL CMP and CSA FT6 flame and smoke requirements.
Applications:
| Part Number | Description |
|---|---|
| PSI-5ECMP-BL-1000 | CAT5e CMP Plenum 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMP-WH-1000 | CAT5e CMP Plenum 24AWG 4-Pair UTP 1000ft Pull Box |
| PSI-5ECMP-GY-1000 | CAT5e CMP Plenum 24AWG 4-Pair UTP 1000ft Pull Box |

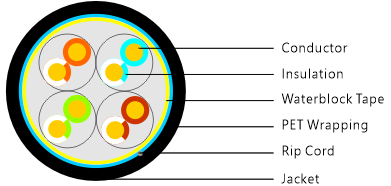

CAT5e Outdoor Direct Burial (ODB)
Gel-Filled, UV-Resistant Jacket, Direct Burial Rated
Designed for outdoor underground installations. Gel-filled core protects against moisture ingress. UV-stabilized jacket for above-ground runs.
Applications:
| Part Number | Description |
|---|---|
| PSI-5EODB-BL-1000 | CAT5e Outdoor Direct Burial Gel-Filled 1000ft |
| PSI-5EODB-M-BL-1000 | CAT5e Outdoor Direct Burial Messenger Cable 1000ft |
CAT5e Armoured Outdoor (CMRX)
Steel Armoured, UV-Resistant, Direct Burial
Heavy-duty armoured construction for maximum protection in harsh outdoor environments. Suitable for direct burial and conduit installations.
Applications:
| Part Number | Description |
|---|---|
| PSI-5ECMRX-BX-1000 | CAT5e Armoured CMR Outdoor Direct Burial 1000ft |
CAT5e Keystone Jacks
SDJ Series UTP Keystone Jack — T568A/B, 110-Type IDC
Applications:
| Part Number | Description |
|---|---|
| PSI-5EKSJBL-S | CAT5e SDJ Series UTP Keystone Jack |
| PSI-5EKSJWH-S | CAT5e SDJ Series UTP Keystone Jack |
| PSI-5EKSJIV-S | CAT5e SDJ Series UTP Keystone Jack |
| PSI-5EKSJBL-25PK | CAT5e SDJ Series UTP Keystone Jack |
| PSI-5EKSJWH-25PK | CAT5e SDJ Series UTP Keystone Jack |
| PSI-5EKSJIV-25PK | CAT5e SDJ Series UTP Keystone Jack |
CAT5e Patch Panels
110-Type, 1U, 12/24/48-Port
| Part Number | Description |
|---|---|
| PSI-5EPP12V-S | CAT5e 110-Type Patch Panel 1U 12-Port UTP |
| PSI-5EPP24-S | CAT5e 110-Type Patch Panel 1U 24-Port UTP |
| PSI-5EPP48-S | CAT5e 110-Type Patch Panel 1U 48-Port UTP |
Need a Quote or Custom Order?
Our team is ready to help with specifications, bulk pricing, and custom requirements.
